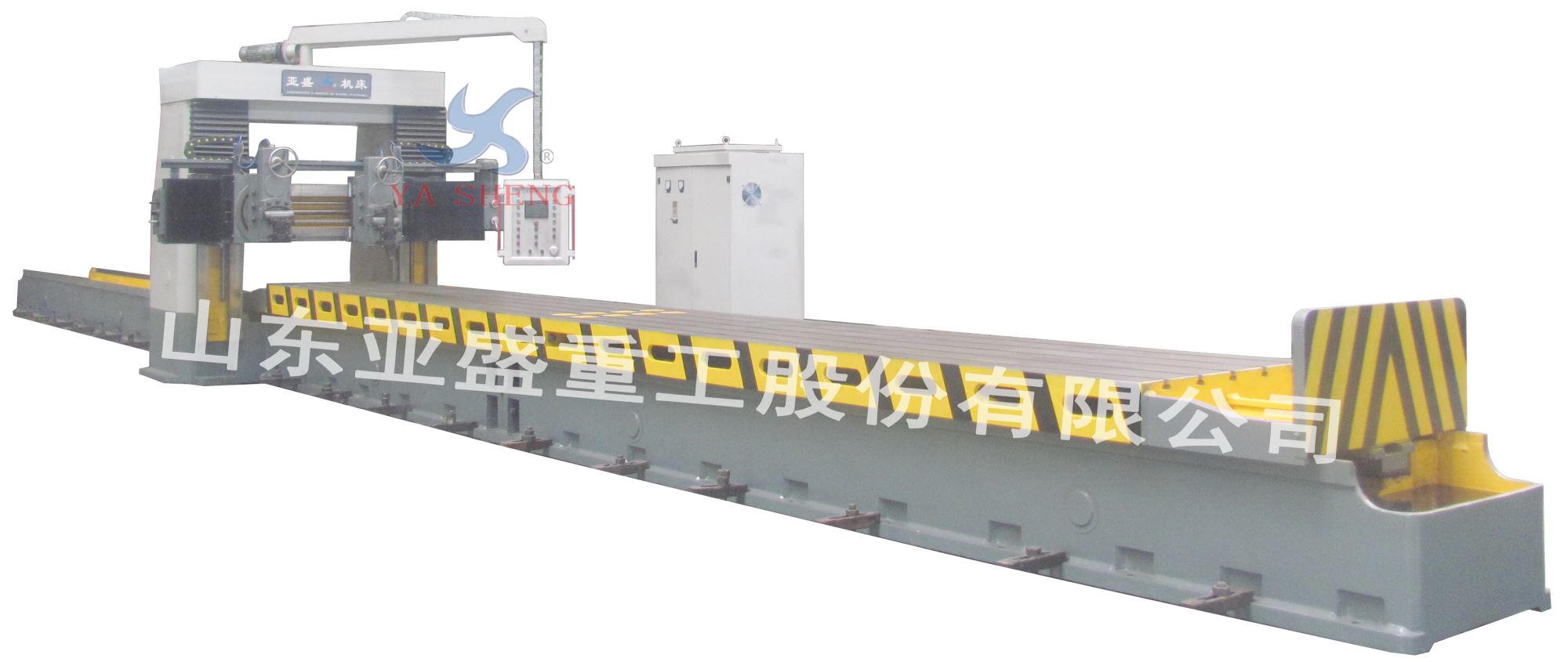

B2010 a 50 series gantry planer
*Introduction to machine tools
320 series of gantry planer is Shandong Yasheng Heavy lndustries (o, Ltd. engaged in a number of gantry planer design, manufacturing many/ears of senior experts in the traditional planer on the basis of the development of a new machine, its function brings together the mostadvanced machine advantages, with advanced electrical appliances, Mechanical and electrical control technology to upgrade, equipped withmilling head,grinding head can beachieved planing, milling, grinding and drilling, countersinking and otherfunctions, equipped with rightangle attachment milling head to a workpiece to achieve a five-sided processing, Machine mult-purpose, improve the workpiece processingaua itv and production efficiency. The series ot machine tools is the root ot the mi ing machine arindina machineowndation tre deweloomertthe differert requirements ofof the same time the reserves of the milling.drKCInOreadw to install millinahea0orindinggead tomeetprocessing

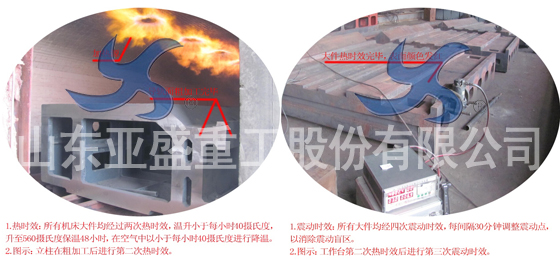

* Main components of machine tools Bed, table, left and right columns, beams, gantry,connecting beams are made of resin sand molding, high-quality high-alloy wear-resistant castiron casting, hot bunker annealing - vibration aging - heat furnace annealingvibration aging - roughing - vibration Aging - furnace annealing - vibration agingfinishing, completely eliminate the mechanical load, to maintain the stability of mechanicaparts.

Clamping system Beam lifting position for the mechanical locking or hydraulic lockingpositioning accuracy.
* Turret Vertical tool holder (vertical milling head) Horizontal feed, side knife (side millinghead) Vertical feed are AC servo control, intermittent, continuous stepless feed.

* Guide wear Machine rail surface by super audio quenching or point contact hardeningtreatment, refined from. Workbench rails are bonded to the surface with high wear resistance

* Lubrication system Lubrication pilot to achieve oil-cooled adjustable semi-staticpressure, saving operating power, long-term to maintain the accuracy of the guide.

* Main movement The main drive using Yasheng Heavy Industries independentlydeveloped four-speed planer, milling, grinding multi-function gearbox, controlled byfrequency conversion, stepless speed control electronic control system, to achieve low speedhigh torque, fast planing efficient, low speed milling, Grinding, running smoothly.

* Control System The electromechanical control system uses programmable PLC centraprocessing unit and intelligent power amplifier, digital AC servo control technology (IMSseries controller), to achieve three-phase AC induction motor high-precision servo control.YSK AC servo control (frequency conversion) motor to achieve low speed, low powerconsumption, high torque drive (30-40% energy saving than the DC motor group), 2500-lineencoder, can achieve precise operation control. Workbench set to touch screen settings, allfeed for the hanging button station, accurate and convenient.
